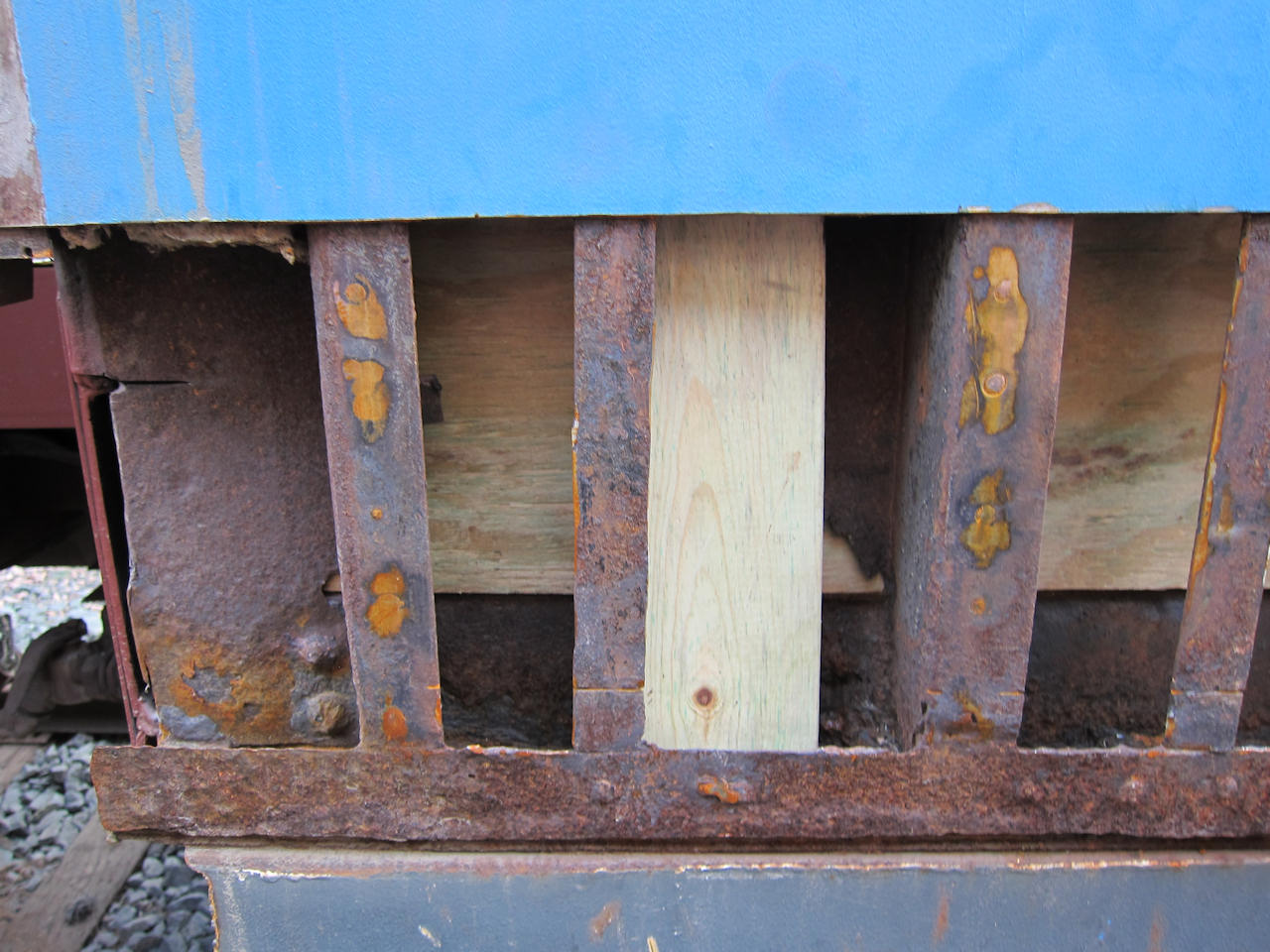

These pictures were taken immediately after the abatement crew removed the insulation from the kitchen, hallway and dining room. The sequence starts at the vestibule opposite the handbrake (BR corner) and walks counterclockwise around the car to the handbrake (BL corner). Each slightly overlaps the previous. Also, the right (hallway) side is painted blue and the left (kitchen) side is painted orange and green.
You may need to enable Javascript content in your browser for this slide show to work.
| Back | Forward |
| Back | Forward |
ACF drawing 5668715 shows the side cross section. Look for "View H" in the top middle of the drawing.
Starfire drawing 09053-A007 shows the repair.
